Power API

Please refer to your Cryptosat onboarding instructions for setup

Turn on specific Crypto Engines of the Flatsat

get

Turn on Crypto Engines based on their indices.

Query parameters

cestringRequired

Comma separated list of Crypto Engine indices to turn on. Examples: '0', '1,2,4', '3,2'

Example: 1,2

Responses

200

Operation was successful

application/json

400

Invalid input

application/json

get

/turn_on

HTTPcURLJavaScriptPython

GET /turn_on?ce=text HTTP/1.1
Host: 0.0.0.0:8000
Accept: */*

{
  "message": "text"
}

Turn off specific Crypto Engines of the Flatsat

get

Turn off Crypto Engines based on their indices.

Query parameters

cestringRequired

Comma separated list of Crypto Engine indices to turn off. Examples: '0', '1,2,4', '3,2'

Example: 1,2

Responses

200

Operation was successful

application/json

400

Invalid input

application/json

get

/turn_off

HTTPcURLJavaScriptPython

GET /turn_off?ce=text HTTP/1.1
Host: 0.0.0.0:8000
Accept: */*

{
  "message": "text"
}

Get the status of all Crypto Engines on the Flatsat

get

Retrieve the current status of all the Crypto Engines.

Responses

200

Status retrieved successfully

application/json

get

/status

HTTPcURLJavaScriptPython

GET /status HTTP/1.1
Host: 0.0.0.0:8000
Accept: */*

200

Status retrieved successfully

{
  "status": {
    "ANY_ADDITIONAL_PROPERTY": {
      "is_on": true,
      "alias": "text"
    }
  }
}

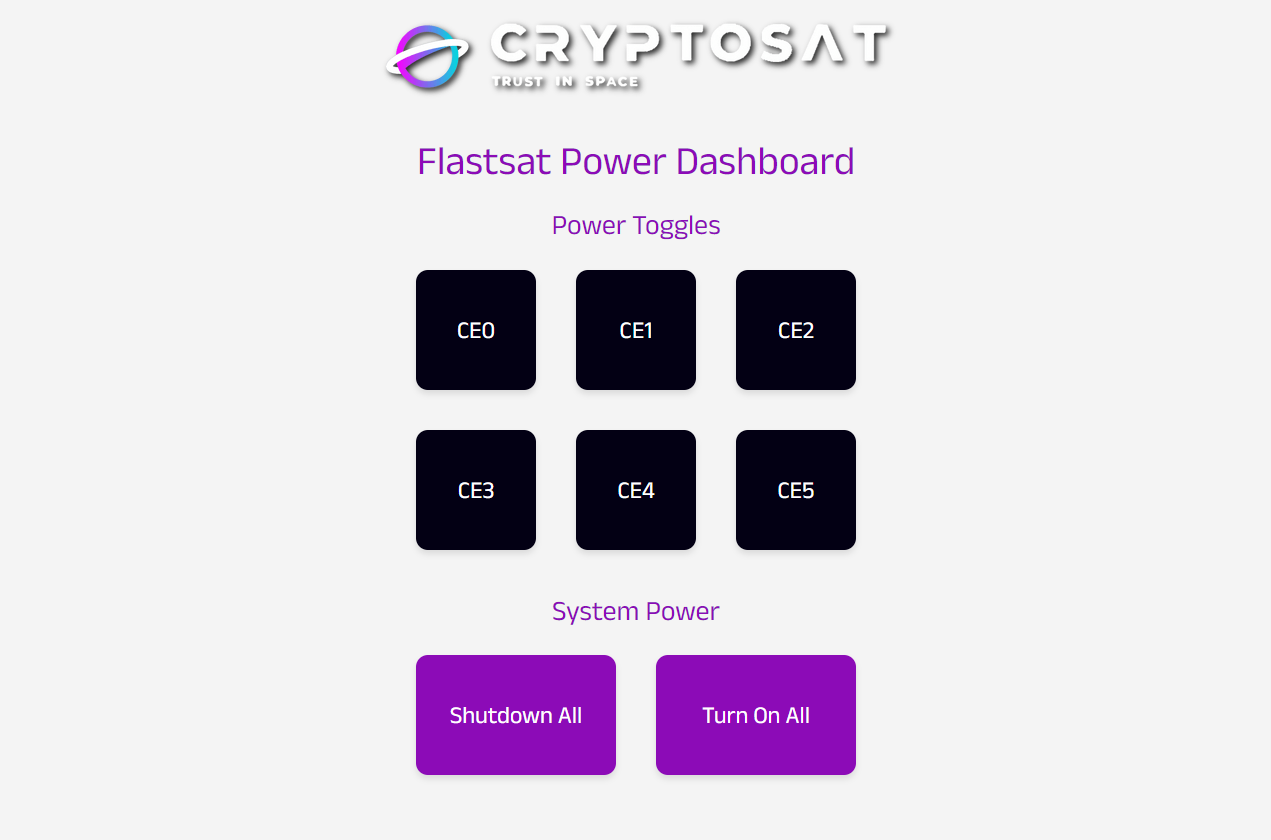

UI Dashboard

At your disposal is a simple GUI dashboard for monitoring and controlling power supply
